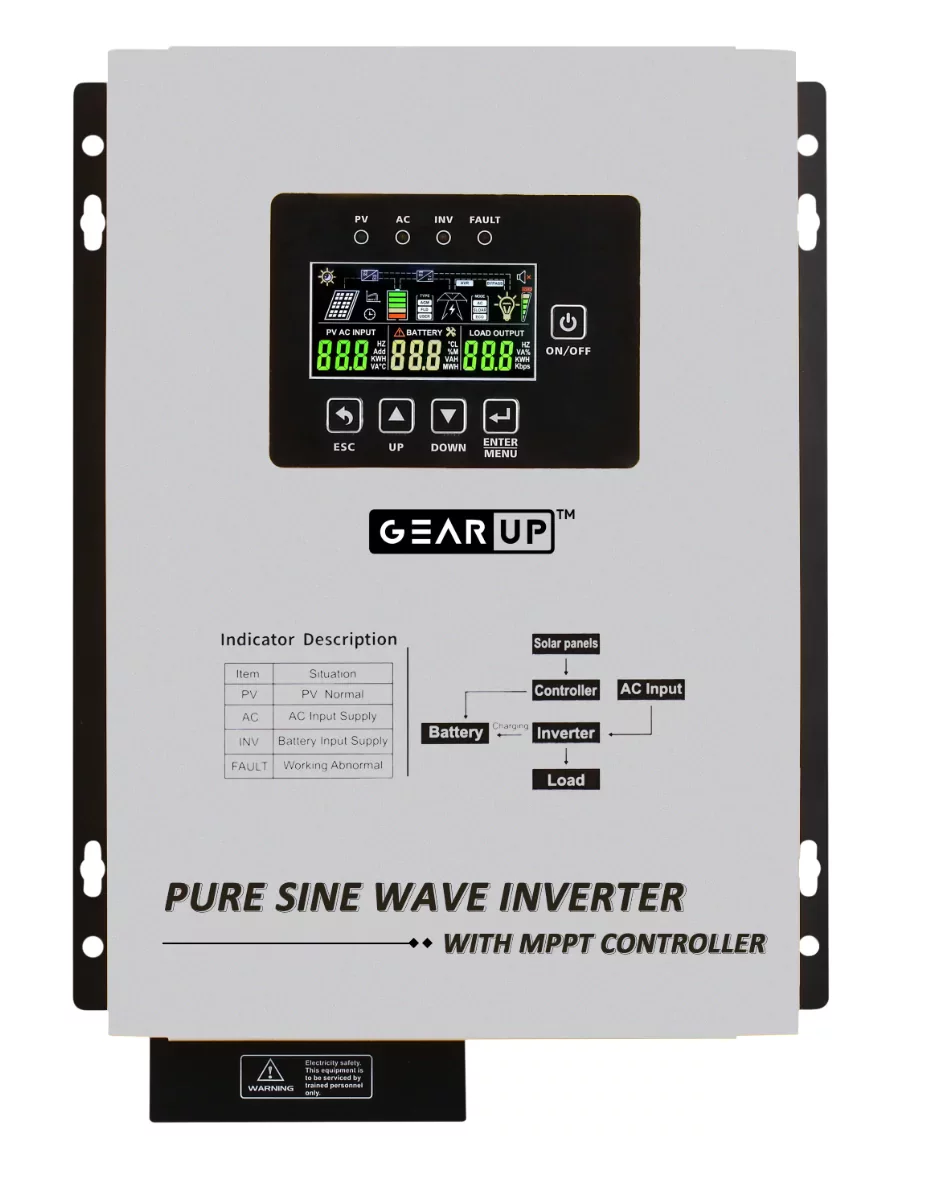

GearUP 1200W, 24V, Pure Sine Wave Solar Inverter With 40A MPPT Charge Controller (Lithium & Acid Battery Supported) – GHT-12K24 Plus

GearUP 1200W, 24V Pure Sine Wave Solar Inverter – Bangladesh

The GearUP 1200W, 24V Pure Sine Wave Solar Inverter is now available in Bangladesh. Get 100% genuine products at the most affordable price from QLORAA.COM and enjoy premium quality backed by excellent customer service.

Specifications

General

• Product Type: DC to AC Inverter & Battery Charger

• Input Voltage: 165–275VAC (Rated 220VAC)

• Battery Voltage: 24V DC

Charging

• Maximum AC Charging Current: 15A

• DC Charge Voltage: 24–32VDC (24V System)

• Maximum Solar Charge Current: 40A

• Maximum Charging Current: 55A

Output

• Output Voltage: 220V

• Output Frequency: 50Hz/60Hz (Auto Recognition)

• Output Type: Single Phase

• Waveform: Pure Sine Wave

• Inverter Efficiency: 90%

• UPS Transfer Time: ≤5ms

• Surge Power: Up to 3× rated power

• Transformer: Toroidal

Solar (PV)

• Max PV Open Circuit Voltage: 100V

• Maximum PV Array Power: 1200W (24V System)

Protection Features

• Short Circuit

• Overload

• Overvoltage

• Overtemperature

Display & Communication

• Display: LCD + LED

• Communication Port: RS485 (Supports WiFi Dongle – not included)

• System Languages: English / Chinese

Working Modes

1. AC Mains Priority Mode

2. ECO Mode

3. Battery Priority Mode

4. Unattended Mode

GearUP Inverter (GHT, GHT Plus, GFT Models) Mode Description

1. AC Priority Mode (UPS Function)

When both AC input and battery power are available, the inverter prioritizes AC input. If AC fails, it automatically switches to battery power without interrupting the load—similar to a UPS.

2. Battery Priority Mode

Uses solar power first (if available). When solar is unavailable, it uses battery power.

• AC input is used only when the battery reaches low voltage.

• AC input does not charge the battery in this mode—helps reduce electricity costs.

• When solar restores battery voltage, the inverter switches back to solar/battery operation.

3. ECO Mode

The inverter checks the load every 5 seconds.

• If load < 10% of rated capacity, output turns off to save power.

• When load exceeds 10%, inverter resumes power output.

4. Generator Mode

Suitable for generators with unstable voltage.

• Accepts wide AC input range (165V–275V).

• Ensures stable 220V ±10% output.

5. Unattended Mode

Ideal for remote sites, telecom towers, or off-grid environments.

• AC output stops when battery reaches low voltage.

• When solar charges the battery the next day, the inverter restarts automatically.

• If AC input exists, AC is used first.

Note: If your inverter model does not include MPPT/solar input, ignore the solar-related functions.
